Screening plant - Hewitt-Robins - Montgomery Wood Hog - $48,500 (Mount Joy)
condition:
excellent
make / manufacturer:
Hewitt Robins - Montgomery
model name / number:
VSG-05214-01 (Screener)
size / dimensions:
10' wide x 30' long x 13'4" high
QR Code Link to This Post

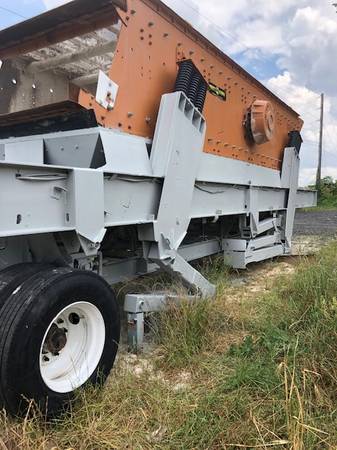

The Hewitt-Robins screener has the 3 phase motors to run the system.
1. Hewitt-Robins
6’ x 24’ V14
Year: 1985
Make: Hewitt-Robins
Model: VSG-05214-01

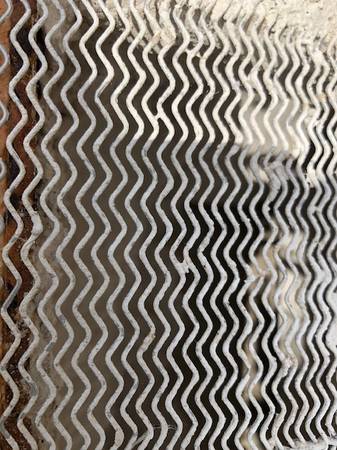

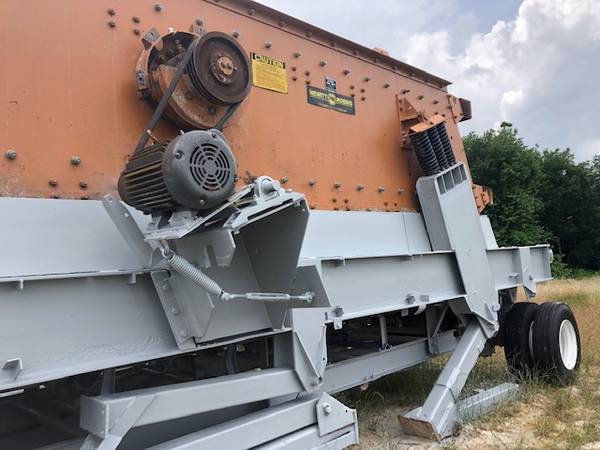

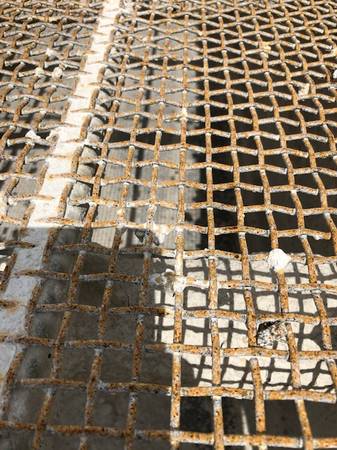

Runs on 3 phase 30 hp motor. Makes 3 sizes, current screens are heavy duty 2” screen on top deck and 3/8” Veno-harp screens set on lower deck. Fines fall to bottom discharge wide belt conveyor via a 10 hp motor
Used for soft powder material. Great working condition.
Collapses for hauling. New tires. Pulls with 5th wheel. 10’ wide x 30’ long x 13’4” high for road transport.
Parts: HR International Corp. 2335-I Airport Blvd West Columbia, SC
Price: Will sell separate @ $48,500 or best offer
2. Montgomery 57 PMKC wood hog stationary grinder
Model: 57PMKC
Infeed Opening: 51" x 21",
Wear Liners: 3/4" AR plate in the upper feed area
Discharge: Bottom, 66" x 22" Opening
Bearings: 4-15/16" Spherical-Roller type
Current Screen Size: 2" (various screen sizes can be used)
Rotor Assembly: approx. 22" Diameter x 59" Long
Hammers (Teeth): Set of (19)
Anvils: Set of (10) Large and (9) Small
Guard Cover(s): V-Belt-drive
Shipping Weight: Approximately 15,000 pounds (hog only)
Recommended HP: motor is not included, depending on application of grinding you will want a 75-150 hp motor
Recommended RPM: 1200 RPM
Support Steel Platform: available for purchase
Upper Infeed Hopper included: no
Price: will sell separately for $29,000
